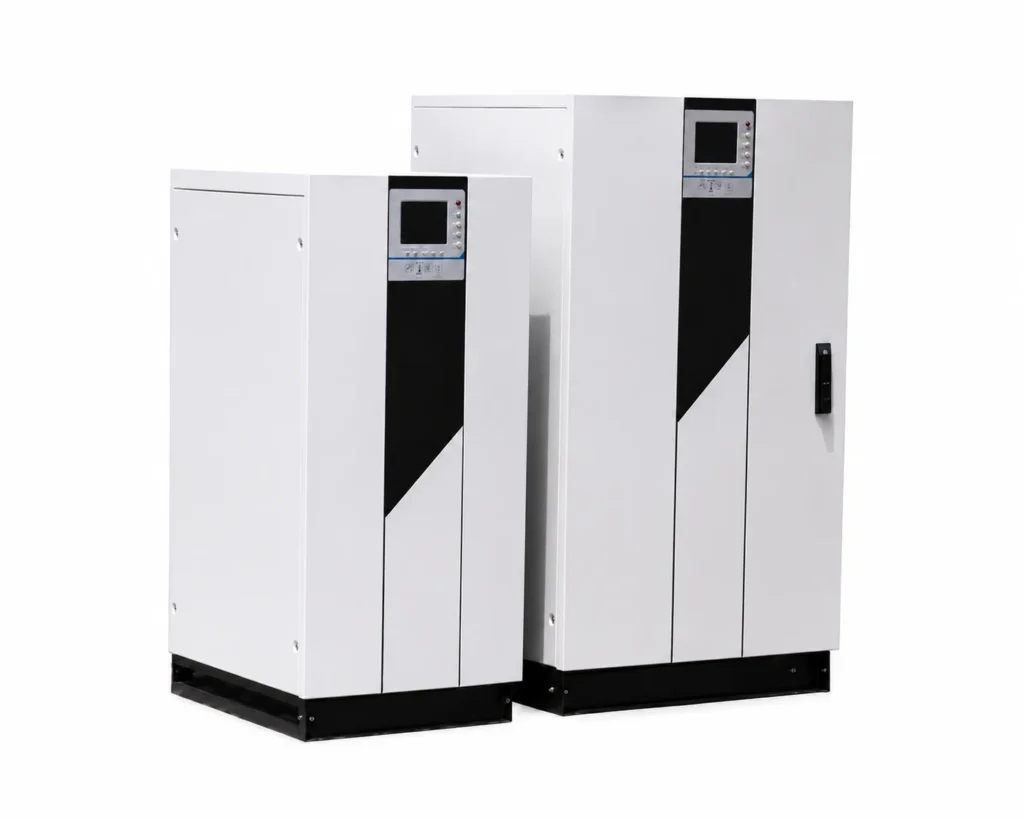

TANIESH EPX3360 Online UPS (60 KVA)
60 KVA Three Phase Online UPS for Reliable Industrial & Commercial Power Protection
- Microprocessor Controlled
- Fast Automatic Power Backup
- Smart Battery Charging
- Advanced Protection System
- Energy-Efficient Design
Key Highlight
Simulated
Wave Output
DSP Based
PWM Technology
Fast Battery
Charging
Wide Inpur
Voltage Range
Intelligent Battery
Management
Auto
Restart
Overload
Protection
Short Circuit
Protection
Eco Friendly
Operation
Stylish Compact
Body
Low noise
Performance
Energy Saving
Design
Product Overview
The EPX3360 is a 60 KVA Three Phase Online UPS designed to provide dependable power protection with high efficiency and superior reliability. Its advanced monitoring system, generator compatibility, manual maintenance bypass, and intelligent communication features ensure uninterrupted operation and simplified maintenance for critical power applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EPX3360 |
| UPS Type | Online UPS (3 Phase Input / 3 Phase Output) |
| Capacity | 60 KVA |
| Input Voltage | 380 / 400 / 415 VAC Three Phase |
| Input Voltage Range | ±25% |
| Input Frequency | 50/60 Hz ±5 Hz (Auto Sensing) |
| Input Power Factor | >0.8 (Filter-Free), 1 (Filter) |
| Output Voltage | 380 VAC (or 400/415 VAC) ±1% |
| Output Frequency | 50/60 Hz ±0.05% (Battery Mode) |
| Output Power Factor | 0.9 (Lag) |
| Waveform | Pure Sine Wave |
| Overload Capacity | 110% for 1 Hour, 125% / 150% / 200% of Rated Current (10'/1'/1") |
| Efficiency | Up to 91% |
| Battery Voltage | 32 / 33 / 34 Batteries (User Full Load) |
| Communication | Dry Contact, RS232, RS485, SNMP Card |
| Display | LED & LCD Status Monitoring |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 0–95% RH (Non-Condensing) |
| Noise Level | <68 dB (1 m Away from Unit) |
| Dimensions (W × D × H) | 800 × 740 × 1400 mm |
| Net Weight | 575 Kg |
- Model: EPX3360
- Capacity: 60 KVA
- Input Configuration: Three Phase
- Output Configuration: Three Phase
- Output Waveform: Pure Sine Wave
- Efficiency: Up to 91%
- Dimensions (W × D × H): 800 × 740 × 1400 mm
- Net Weight: 575 Kg
- Ensures uninterrupted power for critical business operations
- Protects sensitive equipment from voltage fluctuations and outages
- Pure sine wave output for maximum equipment safety
- Intelligent battery charging extends battery life
- High efficiency reduces energy consumption
- LCD and LED display for easy monitoring
- Generator compatible for reliable backup power
Testimonials
Frequently Asked Questions
1. What is the TANIESH EPX Series?
The TANIESH EPX Series is a 3 Phase Input / 3 Phase Output True Online UPS designed to provide uninterrupted and clean power for critical industrial and commercial applications.
2. What capacities are available in the EPX Series?
The EPX Series is available in 30 KVA, 40 KVA, 50 KVA, 60 KVA, 80 KVA, 100 KVA, 120 KVA, 160 KVA, and 200 KVA models.
3. Where can the EPX Series UPS be used?
It is ideal for data centers, hospitals, manufacturing plants, telecom facilities, banks, IT companies, laboratories, airports, educational institutions, and commercial buildings.
4. Does the EPX Series provide pure sine wave output?
Yes. Every EPX Series UPS delivers a Pure Sine Wave Output, ensuring safe and stable power for sensitive equipment.
5. Does the EPX Series support remote monitoring?
Yes. It supports RS232, RS485, Dry Contact, and an optional SNMP Card for remote monitoring and UPS management.
