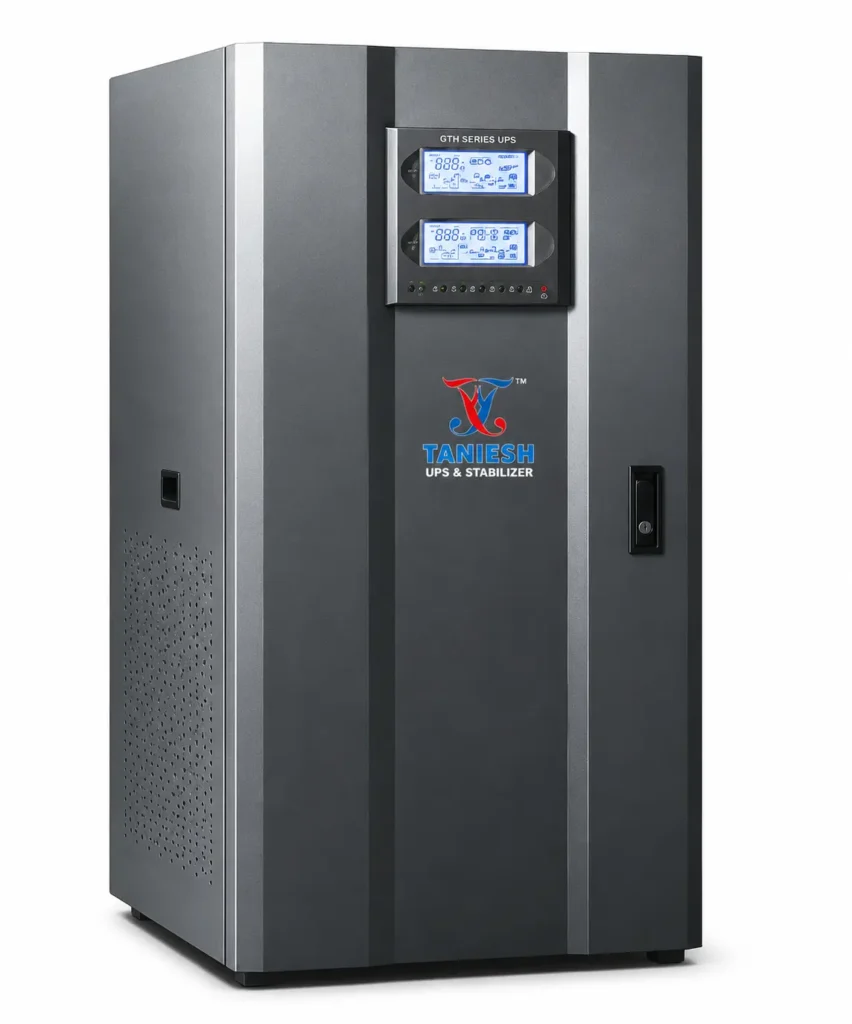

GTH Series UPS – GTH33400
400 kVA Three Phase Online Double Conversion UPS for High-Capacity Industrial & Mission-Critical Power Protection
- 400 kVA Heavy-Duty Three Phase UPS
- Pure Sine Wave Output for Sensitive Equipment
- High Input Power Factor (>0.99)
- Supports Parallel Redundancy up to 6 Units
- 24×7 Reliable Power Protection
Key Highlight
Simulated
Wave Output
DSP Based
PWM Technology
Fast Battery
Charging
Wide Inpur
Voltage Range
Intelligent Battery
Management
Auto
Restart
Overload
Protection
Short Circuit
Protection
Eco Friendly
Operation
Stylish Compact
Body
Low noise
Performance
Energy Saving
Design
Product Overview
The TANIESH GTH33400 is a 400 kVA Three Phase Online Double Conversion UPS engineered to deliver continuous, high-quality power for large industrial facilities, enterprise data centers, healthcare institutions, and other mission-critical environments. Powered by advanced DSP digital control and IGBT-based conversion technology, it ensures precise voltage regulation, pure sine wave output, and dependable protection against power disturbances.
Designed for organizations where uninterrupted power is essential, the GTH33400 safeguards sensitive electrical equipment from outages, voltage fluctuations, surges, harmonics, and electrical noise. Its high efficiency, intelligent monitoring capabilities, and scalable parallel operation make it an ideal solution for large-scale power protection.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GTH33400 |
| UPS Type | Three Phase Online Double Conversion UPS |
| Capacity | 400 kVA |
| Input Configuration | 3 Phase + Neutral |
| Input Voltage | 380 / 400 / 415V AC, 3 Phase + Neutral (±15%) |
| Input Frequency | 50 / 60Hz (±10%) |
| Input Power Factor | >0.99 |
| Input THDi | <4% |
| Bypass System | Standard |
| Output Configuration | 3 Phase + Neutral |
| Output Voltage | 380 / 400 / 415V AC (±1%) |
| Output Frequency | 50 / 60Hz |
| Overload Capacity | 110% Continuous, 125% for 10 Minutes, 150% for 1 Minute |
| Efficiency | Up to 94% (Online Mode), Up to 98% (Eco Mode) |
| Technology | True Online Double Conversion with IGBT Rectifier |
| Control Technology | DSP Controlled SPWM Technology |
| Parallel Operation | Supports Up to 6 UPS Units |
| Communication | SNMP, RS232, RS485 & MODBUS |
| Operating Temperature | 0°C to +40°C |
| Relative Humidity | 0–85% (Non-Condensing) |
| Protection Rating | IP20 |
| Cabinet Colour | RAL 7012 |
The GTH33400 is ideal for:
- Large Manufacturing Plants
- Enterprise Data Centers
- Hospitals & Medical Institutions
- Banking & Financial Data Centers
- IT & Telecommunication Infrastructure
- Airports & Metro Rail Systems
- Industrial Automation Facilities
- Pharmaceutical Manufacturing Units
- Commercial Complexes
- Oil & Gas Industries
- Ensures uninterrupted operation of critical business systems
- Delivers stable and clean power for sensitive electronic equipment
- Protects against power outages, voltage fluctuations, and surges
- High operating efficiency helps reduce energy consumption
- Supports parallel operation for redundancy and future expansion
- Advanced DSP control provides precise system performance
- Reduces equipment downtime and maintenance costs
- Built for continuous industrial operation with maximum reliability
Testimonials
Frequently Asked Questions
1. What is the TANIESH GTH33400 UPS?
The GTH33400 is a 400 kVA Three Phase Online Double Conversion UPS designed to provide uninterrupted, clean, and reliable power for large industrial and mission-critical applications.
2. Which industries are best suited for the GTH33400?
The GTH33400 is ideal for manufacturing industries, data centers, hospitals, telecom infrastructure, banking institutions, airports, commercial buildings, and industrial automation facilities.
3. Does the GTH33400 support parallel operation?
Yes. The UPS supports parallel operation of up to 6 units, enabling higher capacity, load sharing, and N+X redundancy for improved reliability.
4. What communication interfaces are available?
The GTH33400 supports SNMP, RS232, RS485, and MODBUS communication interfaces for remote monitoring and seamless integration with facility management systems.
5. Why choose the TANIESH GTH33400 UPS?
The GTH33400 combines True Online Double Conversion Technology, advanced DSP intelligent control, high efficiency, scalable parallel capability, and dependable industrial-grade performance, making it an ideal power protection solution for large-scale critical operations.
"The GTH33400 has provided reliable power protection for our production facility with excellent stability."
Rajkumar
